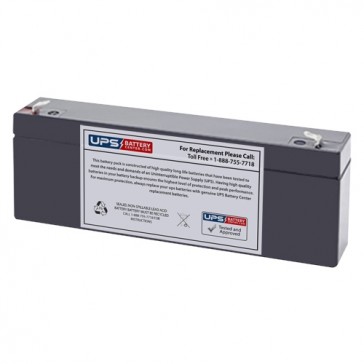

Features of the TLV1226F1 - 12V 2.6Ah Sealed Lead Acid Battery with F1 Terminals
• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Maintenance-free operation
• Low self discharge
Applications
• UPS Standby Power Applications
• Data Centers
• Emergency 911 Centers
• Hospitals & Medical Applications
• Military Power Equipment
• Emergency Lighting
• Fire Detection and Alarm Devices
Product Specifications
Dimensions
Terminal Type: F1
Length (mm/inch): 178/7.01
Width (mm/inch): 35/1.38
Height (mm/inch): 61/2.40
Total Height (mm/inch): 67/2.64
Approx. Weight (kg/lbs): 1.0/2.2
Performance Characteristics
Nominal Voltage: 12V
Nominal Capacity 77ºF (25ºC)
20HR (10.5V): 2.6Ah
10HR (10.5V): 2.6Ah
5HR (10.2V): 2.21Ah
1C (9.6V): 1.47Ah
3C (9.6V): 1.04Ah
Internal Resistance
Fully Charged battery 77ºF(25ºC): Approx. 22mΩ
Maximum Discharge Current: 39A (5 sec)
Charging Methods at 25°C (77°F)
Cycle Use:
Charging Voltage: 14.4-15V
Coefficient -5.0mV/°C/cell
Maximum Charging Current: 0.78A
Standby Use:
Float Charging Voltage: 13.5 to 13.8V
Coefficient -3.0mV/°C/cell
Operating Temperature Range
Charge: -15°C (5°F) to 40°C (104°F)
Discharge: -15°C (5°F) to 50°C (122°F)
Storage: -15°C (5°F) to 40°C (104°F)
Charge Retention (Shelf Life) at 20°C (68°F):
1 Month: 92%
3 Month: 90%
6 Month: 80%
Case Material: ABS UL94 HB
Discharge Rates in Watts to Various End Voltages
Discharge Rates in Amperes to Various End Voltages
(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the mimimum values.
Battery Construction
